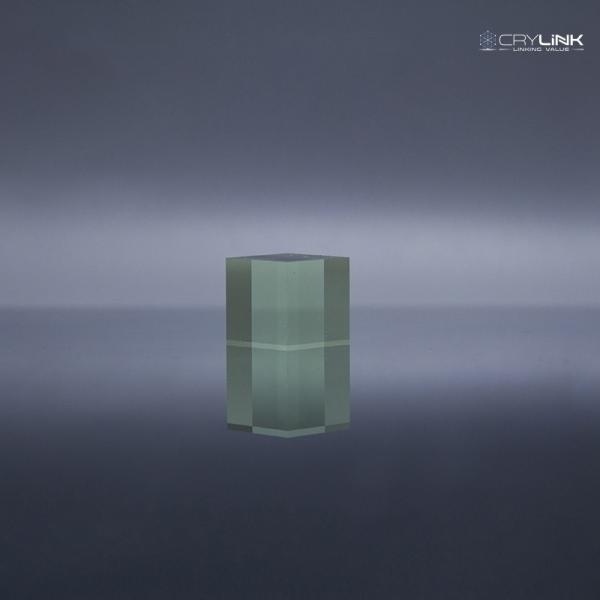

Pr LuAG Single Crystals High Light Yield Excellent Energy Resolution

Place of Origin : China

Brand Name : CRYLINK

Certification : Iso9001

MOQ : 1 Pieces

Price : negotiation

Packaging Details : Carton

Delivery Time : 3-4 weeks

Payment Terms : TT

Supply Ability : 100 pieces /month

Model Number : CRYLINK-Pr:LuAG Scintillator Crystal

Chemical formula : Pr:Lu3Al5O12

Density (g/cm3) : 6.73

Melting point (℃) : 2043

Hardness (Mho) : 7.5

Contact Now

Pr doped Lu3Al5O12(LuAG), which was first introduced in 2005, has attracted great attention for its good scintillator performance having high density (6.7 g/cm3), fast decay time(~20 ns), high light yield and excellent energy resolution of 4.6%. Those demonstrated it a competitive scintillator.

Pr:LuAG Scintillator Crystal— A promising Fast Scintillator used for TOF

Scintillators with high light yield and fast decay are essential in the time-of-flight (TOF) technique for a satisfactory coincidence timing resolution to give precise TOF information. Among garnets, Pr:Lu3Al5O12 was pointed out as a promising fast scintillator already in 2005. Pr:LuAG has a decay time of about 20 ns, which is even shorter than that of Ce:LSO. The light yield of Pr:LuAG is 3 times higher than that of BGO. In addition, Pr:LuAG has a high density of 6.7 g/cm3 which is important of x and g-ray detection, as well as an outstanding energy resolution of 4.6% at 662 keV that is beneficial for gamma ray discrimination. It has been attracting much attention and is presently commercially used in Positron Emission Mammography (PEM).

Material features
Chemical formula Pr:Lu3Al5O12
Density (g/cm3) 6.73
Melting point (℃) 2043
Hardness (Mho) 7.5
Hygroscopic No
Cleavage No
Solubility (g/100gH2O) N/A
Thermal conductivity (W/mK) 9.7
Thermal expansion coeff (C-1) 8.8*10-6

Scintillator properties

Wavelength(Max. emission) (nm) 310
Decay time (ns) 20
Light yield (photons/keV) 22
Light output relative to Nal(Tl) (%) 20
Refractive index 2.03@310nm
Radiation length (cm) 1.41
Optical transmission (um) TBA
Transmittance (%) TBA
Reflection loss/surface (%) TBA
Energy resolution (%) ≤5
Neutron Capture Cross-section (barns) TBA
Afterglow (%) <0.3
